Anchor NP4
163.90 $
To secure a beam perpendicular to the foundation.
- Galvanized steel support to withstand weather conditions.
- Load capacity up to 4,000 lbs.
- Solid attachment to the foundation with a 3-inch clearance.
- 25-year warranty.
Quincaillerie incluse : 2 anchor screws 5/8″ x 5 1/2″
Description

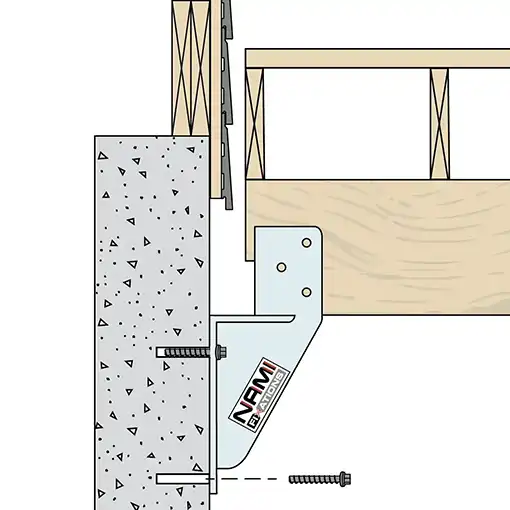

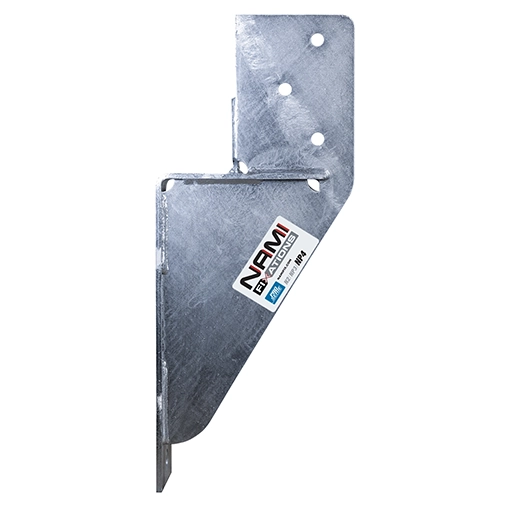

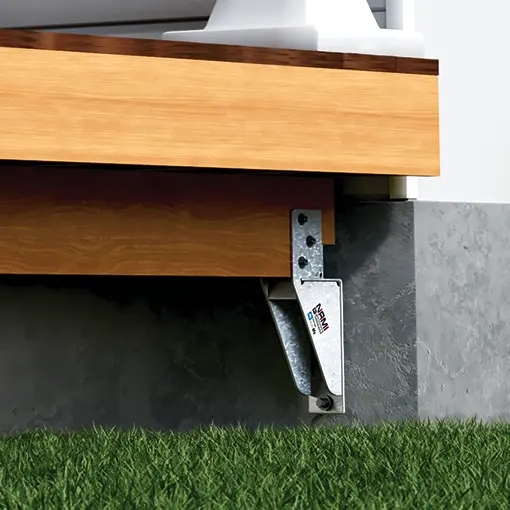

Professional-grade structural support allowing the installation of a beam perpendicular to the foundation. The NamiFix NP4 bracket has a capacity of 4000 lbs with a limited 25-year warranty. This support facilitates the installation of a deck while minimizing the impact on the building. The NamiFix concept becomes very cost-effective due to its simplicity and quick installation. It installs directly onto the foundation. The piece is galvanized to withstand weather conditions.
The necessary anchors to secure the bracket to concrete are included in the box.
Only the use of these anchors allows for the certified 4000 lb capacity of the bracket.
To drill, use a 5/8″ drill bit.
Drill 1/2″ deeper than the length of the anchor provided in the box.
Download your:
Additional information
| Weight | 7.6 kg |
|---|---|
| Dimensions | 21 × 52.1 × 11.4 cm |
